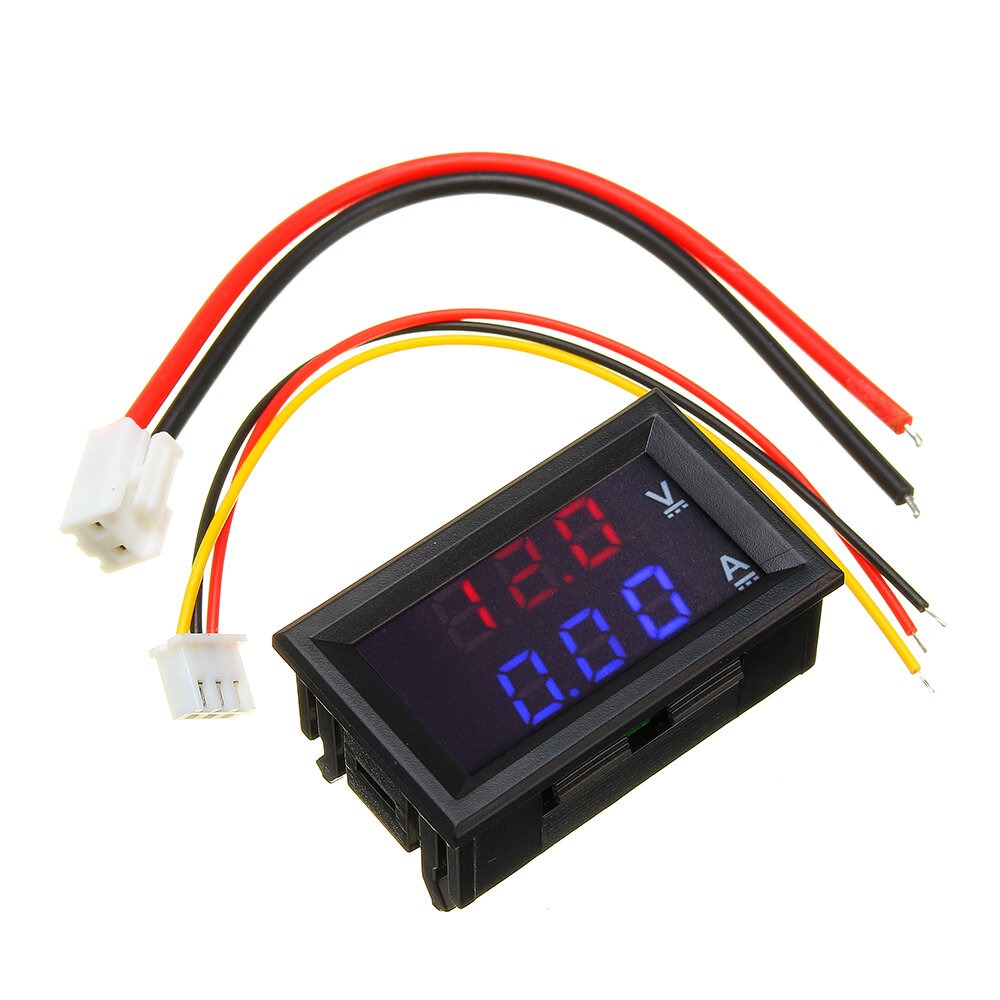

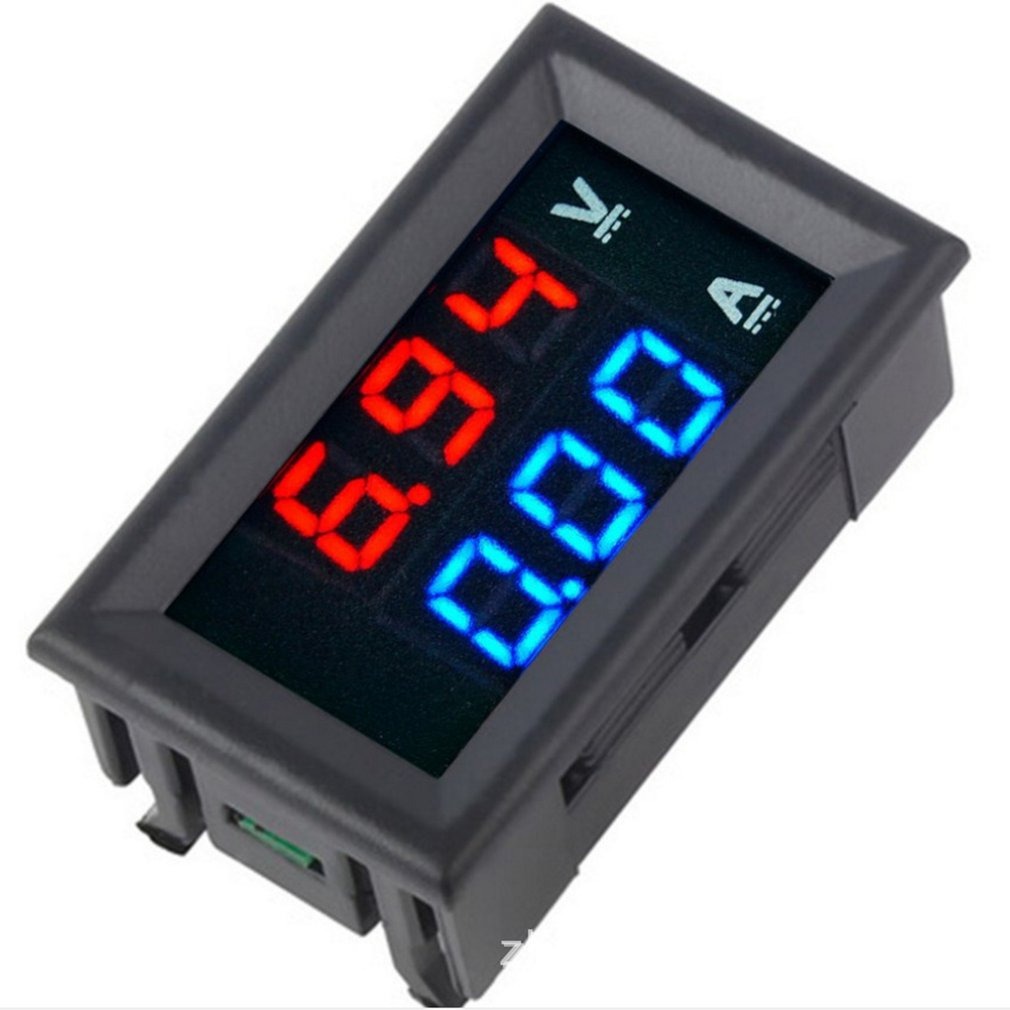

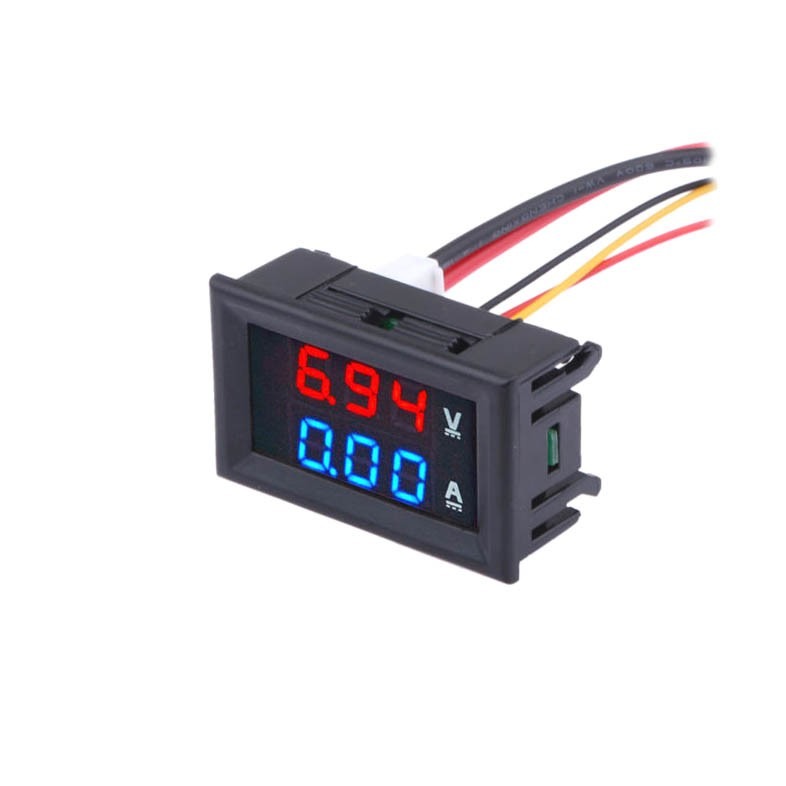

DC Volt Meter Digital Voltmeter Ammeter DC10A Voltage And Amp display

Description

• Operating voltage:DC 4.5 ~ 30V
• Measure voltage: DC 5 ~ 50V
• Measure current :10A (no need external shunt)
• Minimum resolution(A): 0.01A Operating current: <20mA
• Display: three 0.28″ LED digital tube
• Display color: Red and Blue (two-color display)
• Dimensions: 48 x 29 x 21mm
• Mounting cutout: 45.5 x 26.5mm
• Refresh rate: about 500mS / times
• Measure accuracy: 1% (± 1 digit)
• Operating temperature: -10 to 65° c
• Operating Humidity: 10 to 80% (non-condensing) Working pressure: 80 to 106 kPa
